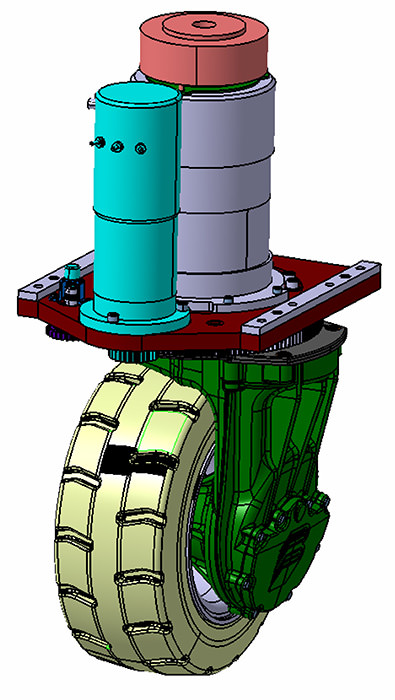

EBv 475 (electric steering)
MAXIMUM LOAD CAPACITY (Kg):
3400
DIAMETRO RUOTA:
475 mm
APPLICATION:
| MAXIMUM LOAD CAPACITY (Kg) | 3400 |
|---|---|
| APPLICATION Ebv | 4 WAY LIFT TRUCK, AGV, CRAINE, LITTLE FORKLIFTS, PLATFORMS, SIDE LOADERS, STAKER MAN ON BOARD |
| REDUCTION RATIO | 13/22/25 |
| MAXIMUM POWER TRACTION MOTOR | 6000 W |
| SUPPLY VOLTAGE (AC) | 24/48/80 V |
| PEACK TORQUE AT THE WHEEL | 1400 Nm |
| CONTINUOUS TORQUE AT THE WHEEL | 453 Nm |
| WHEEL DIMENSION (ØxL)* | 455×146 mm, 458×187 mm |
| POWER OF STEERING MOTOR | 600 W |
| STEERING MOTOR POWER SUPPLY (AC) | 24/48/80 V |
| STEERING FEEDBACK | Rotary potentiometer / Steering sensor |
| EM PARKING BRAKE | 40/75 Nm |
| AVAILABLE TYRES | black rubber, polyurethane, superelastic, supertrack, vulkolan |
